Equipment Specifications: TW100SWU

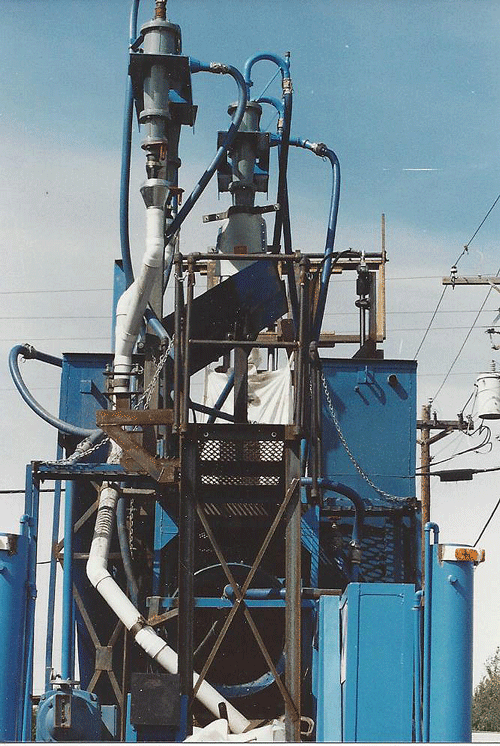

Terra Wash LogoThe salient features common to all SWU systems are mobility and processing efficiency. Fines processing capability was demontrated in the TW75 prototype testing in 1991 and in the more recent 2009 invert R&D at Nexen Drill Rig #19 in British Columbia and in Alberta, Canada. Mobility is the emphasis in the basic design philosophy. These systems are designed to traverse any terrain, anywhere in the world.

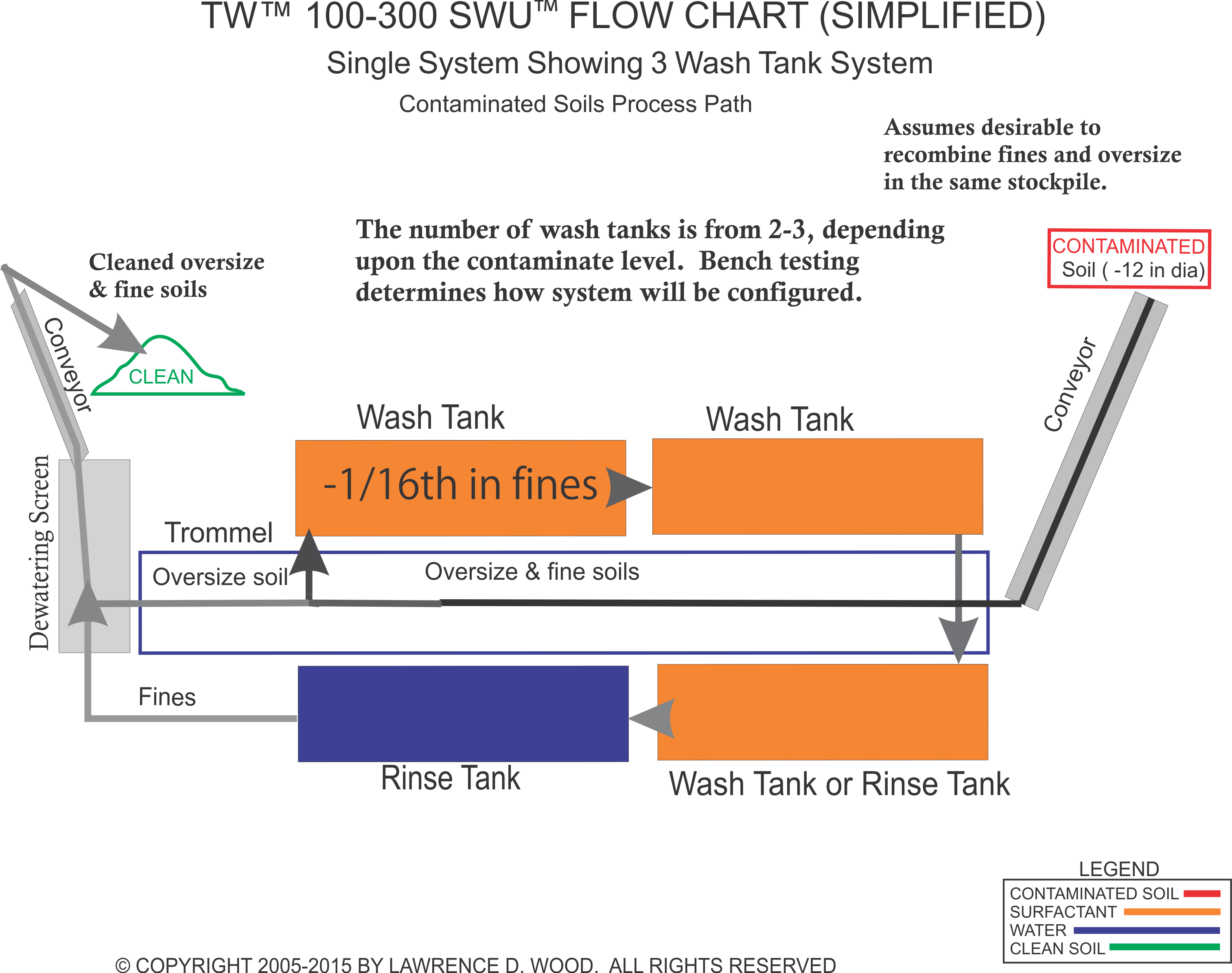

TW100-300 4 Tank Block Diagram

This unit replaces the TW75 two tank system as the smallest Soil Washing Unit (SWU).


    Preliminary Specifications:
  • Height: 13FT 6IN (4.12M)
  • Length: 32FT (9.71M)
  • Width: 8FT (2.43M)
  • Weight: 24,000lb (10.89MT)
  • Axle Capacity: 44,000lb (19.96MT)
  • Production capacity: <=20CYD/hr (15.29M3/hr)
  • Power requirements: 150Kw, 240/480 3ph VAC 60Hz
  • Variable speed motors
  • Number of tanks: 4, 300 gal. (1,200 gal)
  • Hitch type: U.S. 5th wheel
  • Screening unit: 30IN or 36IN dia trommel
  • Other: inverts, bentonite drilling mud
  • Air transportable or connex configurations possible
  • Note: Specifications subject to change without notice.
